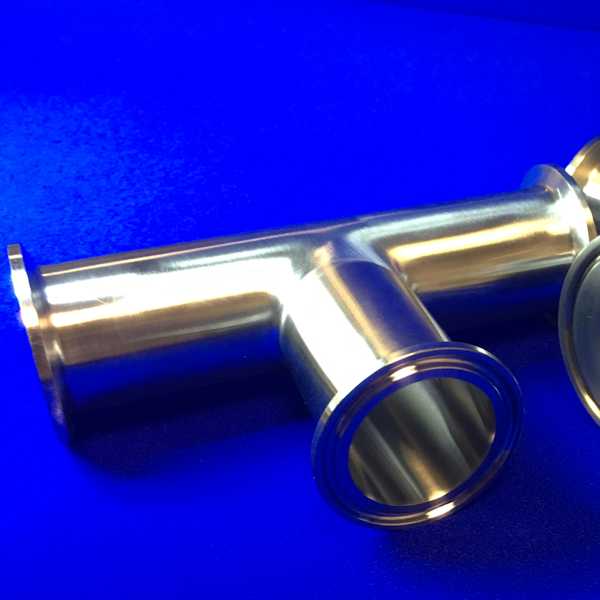

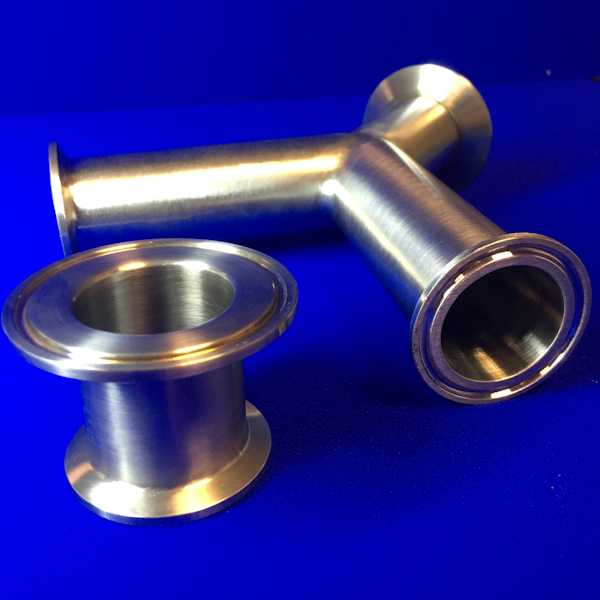

Tee Piece (TPE) and Y Piece (YPE)

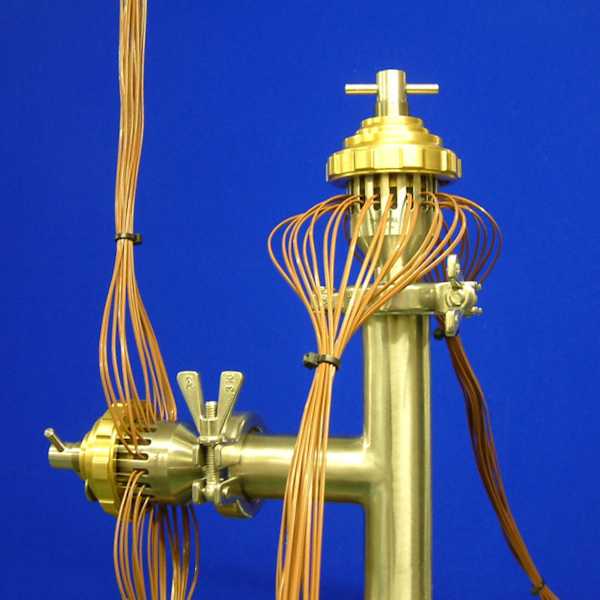

Tee and capitol Y tubes provide a useful method for creating a double entry access through a single port on the autoclave chamber. When combined with two Thermocouple Entry Glands (TCEG), up to 72 validation thermocouples can be installed through a single port. The tubes are available in ASME BPE or a highly polished finish.
Product Features
- Hygienic tube material 316L (1.4404/1.4435) stainless steel
- Tube sizes: ¾”, 1.0″, 1.5″, 2.0″, 2.5 & 3.0″ with tri-clover flange to suit
- ASME BPE to SF1 versions available in the standard sizes
- Extended versions available
- Custom specifications available i.e. 1″ tube with 2x 1″ ports and top to 1.5″ adapter at base. Ideal for temperature mapping
- Available pickled, passivated & electro-polished.
