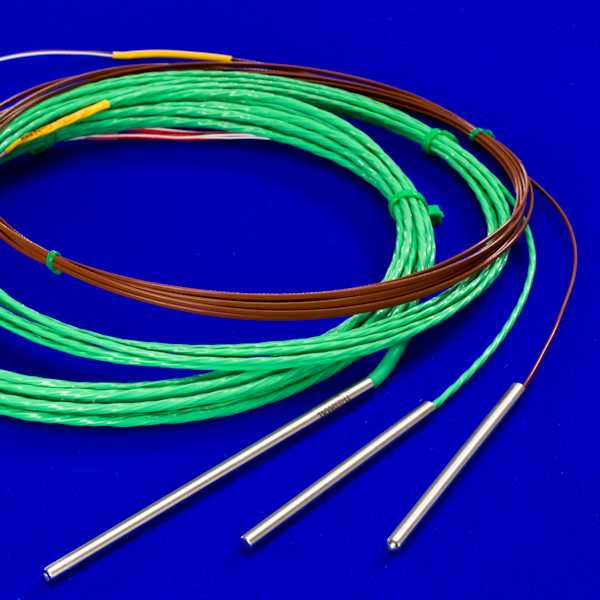

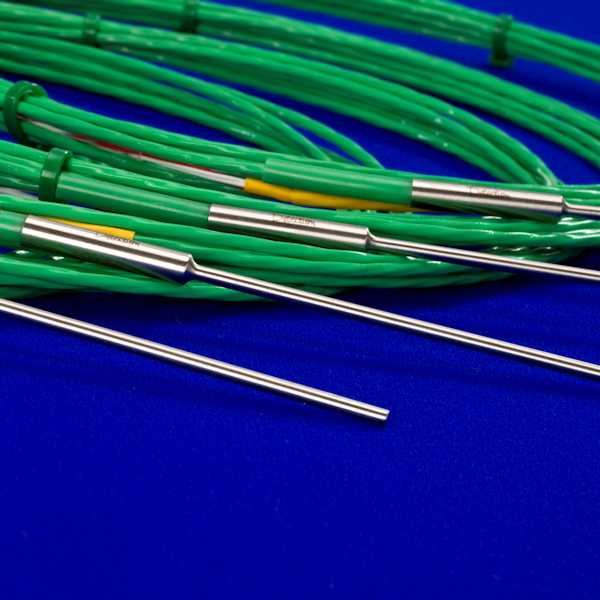

Autoclave Drain, Vent, Air Filter Temperature Probes (SD050)
The SD050 range of autoclave temperature probes offers a high level of reliability for monitoring autoclave drains, vents and air filters.
The drain probe provides critical data to the steriliser control system.
The vent probe monitors the temperature of the chamber atmosphere when returning the chamber back to ambient pressure.
The air filter probe ensures that an acceptable level of air removal from the chamber has taken place prior to the start of the sterilisation cycle.
Sensor Options
The SD050 range is available with a variety of sensing elements to suit individual applications, including:
- PT100 and PT1000 RTD sensors
- Class A, Class AA and 1/10 DIN accuracy to IEC 60751
- Type T thermocouples
- Single, duplex and custom sensor configurations

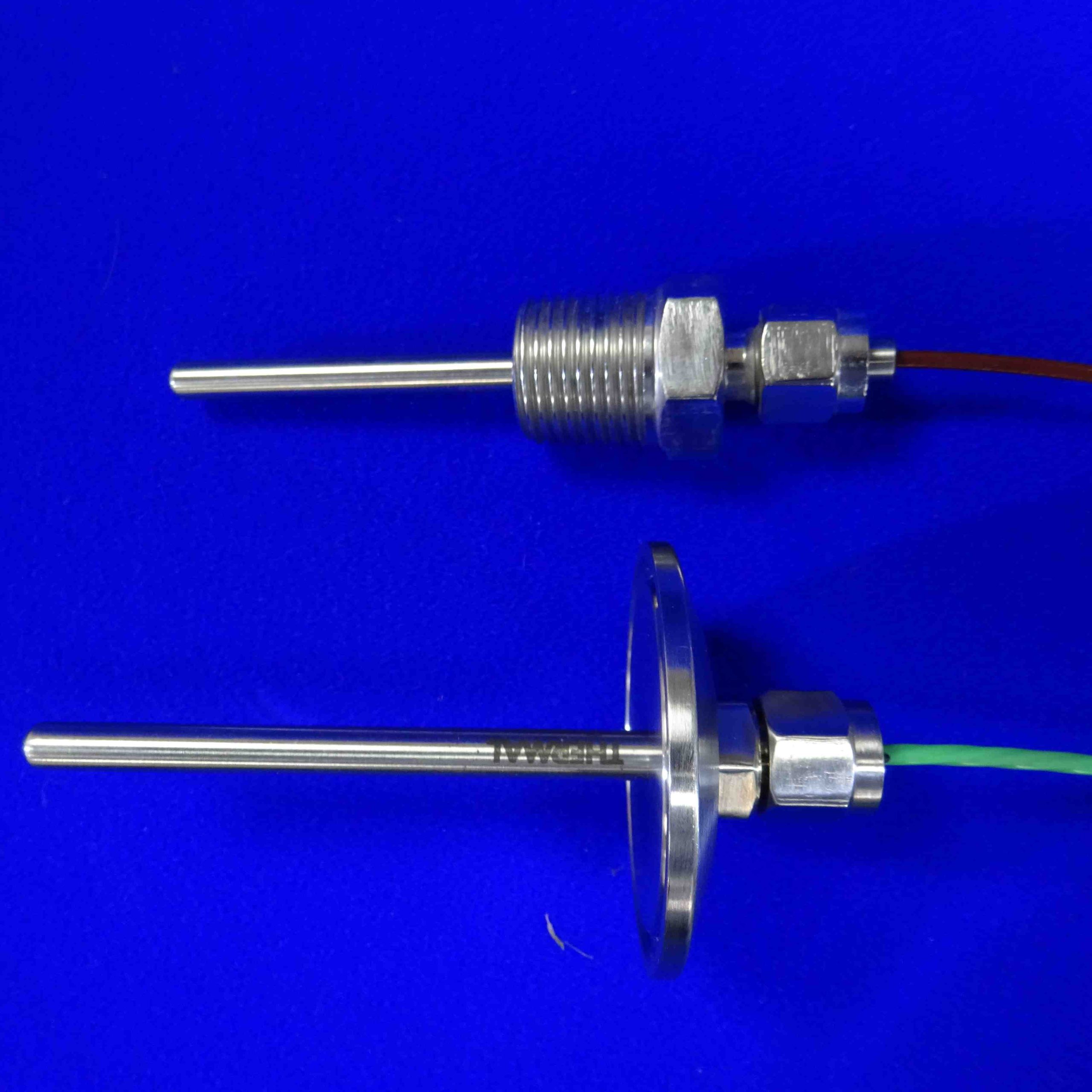

Custom probe lengths, cable types and process connections are available to suit both new equipment and replacement installations.
Key Features
- Designed for autoclave drain, vent and air detector applications
- Fast response for accurate cycle monitoring
- High accuracy and excellent long-term stability
- Suitable for pharmaceutical and healthcare sterilisation processes
- Robust construction for continuous operation in demanding environments
- Custom designs available for OEM and replacement applications
- Manufactured in the UK
Worldwide supply and technical support
Product Features
- All metallic parts in Grade 316L (1.4404/1.4435) stainless steel only.
- All sensor conductors Teflon® insulated with outer jacket in PFA
- Available in PT100 or PT1000 RTD (Class A, AA as IEC 60751 also 1/10 DIN)
- Available in thermocouple formats (type ‘T’ Class 1 as IEC 60584-1 as standard).

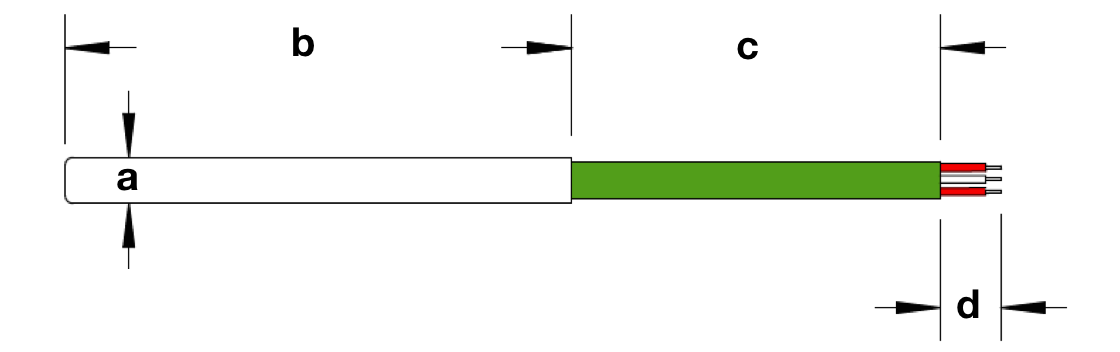

- Standard dimensions ex-stock
- Custom requirements to order.
