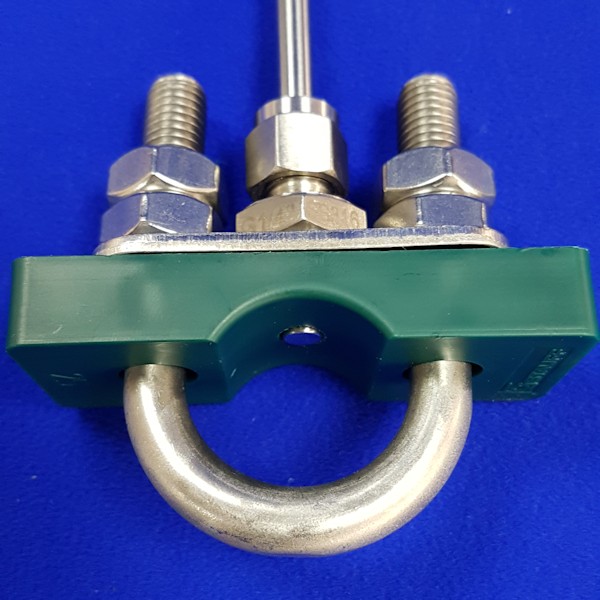

Pipe Clamp Surface Probe (PCUB)

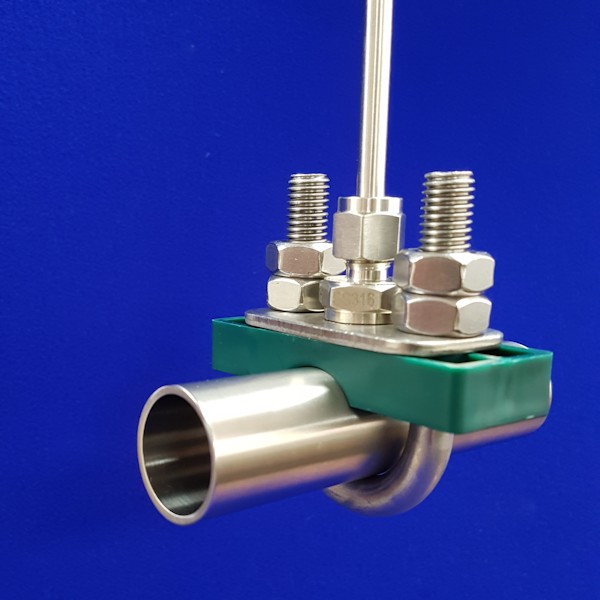

Utilises a U bolt pipe clamp to secure a temperature probe against the surface of a pipe or tube, for use where an invasive measurement is not possible or required.
The temperature probe is easily adjusted or removed.
Available with a range of temperature sensors, PT100 and thermocouple, to suit a wide range of pipe/tube diameters.
- PT100 format: Single or duplex with 2,3 or 4 wire connection, Class B, A, AA or fractional DIN tolerance and to BS EN 60751.
- Thermocouple format: Single or duplex element, type T, K or J in Class 1 material to BS EN 60584-1.
- Probe termination options: flying lead, terminal head with ceramic block or transmitter, quick connect for removable leads.
