Angled Autoclave Chamber & Load Temperature Probe (SL160)

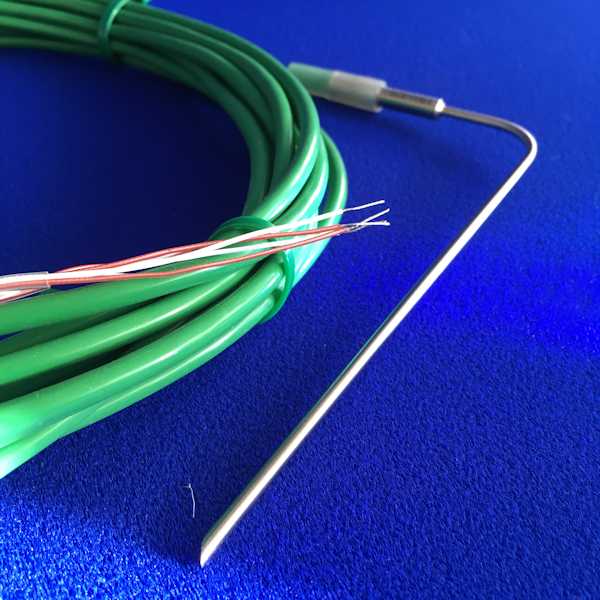

SL160 90° Autoclave Temperature Probe

The SL160 Autoclave Temperature Probe is specifically designed for measuring the temperature of liquid loads contained within bottles, vials and similar containers during pharmaceutical sterilisation processes. Suitable for both load and chamber temperature monitoring, the SL160 provides accurate and reliable temperature measurement throughout the autoclave cycle.

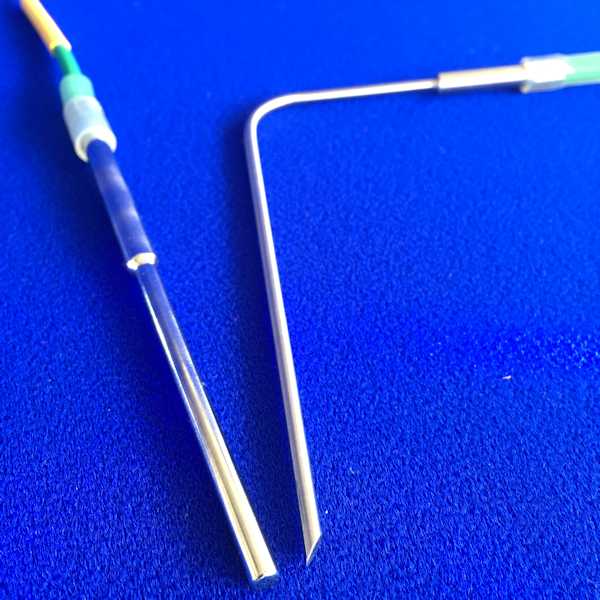

Featuring a 90° bent probe tip, the SL160 is ideal for applications where access is restricted or where the sensor needs to be positioned within containers without placing excessive strain on the cable. An optional chisel-point tip is available to facilitate penetration of bottle closures and seals, enabling accurate monitoring of product temperatures during sterilisation and validation studies.

With its slim, flexible design, the SL160 offers an effective alternative to the Steriprobe® range in applications where space is limited or a lower-profile temperature probe is required. It is widely used in pharmaceutical, biotechnology and healthcare environments for sterilisation validation, thermal mapping and routine process monitoring.

Sensor Options

The SL160 is available with a range of high-accuracy sensing elements, including:

• PT100 RTD sensors
• PT1000 RTD sensors
• Accuracy classes including Class A, Class AA (IEC 60751) and 1/10 DIN
• Type T and K thermocouples
• Single, duplex and custom sensor configurations available

A range of mounting options is available, including:

• Hygienic compression fittings for single or multiple probe installations
• Threaded compression fittings for single probe installations
• Available with BSPT, BSPP, NPT and metric thread options
• Custom fitting configurations available on request

Key Features

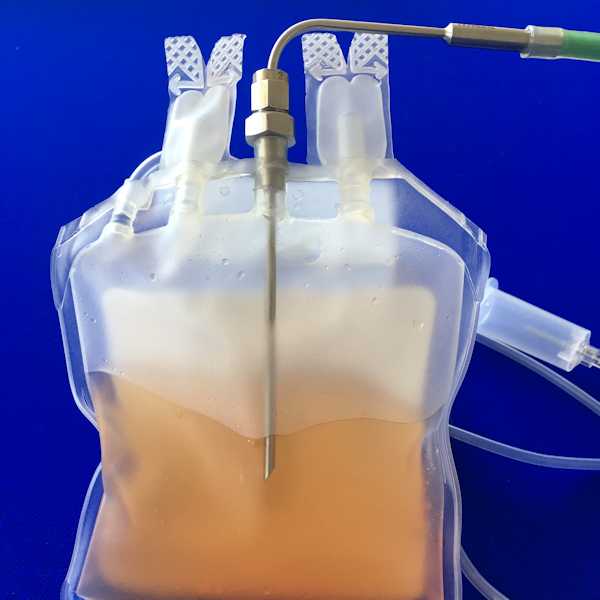

• Designed for monitoring liquid loads in bottles, vials and containers
• Suitable for autoclave load and chamber temperature measurement
• 90° bent probe design for improved access and positioning
• Optional chisel-point tip for penetrating bottle closures and seals
• Slim, flexible construction for restricted-space applications
• Available with PT100, PT1000 and Type T sensor options
• Ideal for pharmaceutical sterilisation validation and thermal mapping
• Custom probe lengths and configurations available

The SL160 combines precision temperature measurement with a practical, space-saving design, making it an excellent choice for pharmaceutical autoclave applications requiring accurate monitoring of liquid products during sterilisation cycles.
