Autoclave Chamber & Load Temperature Probe (SL150)
SL150 Autoclave Temperature Probe

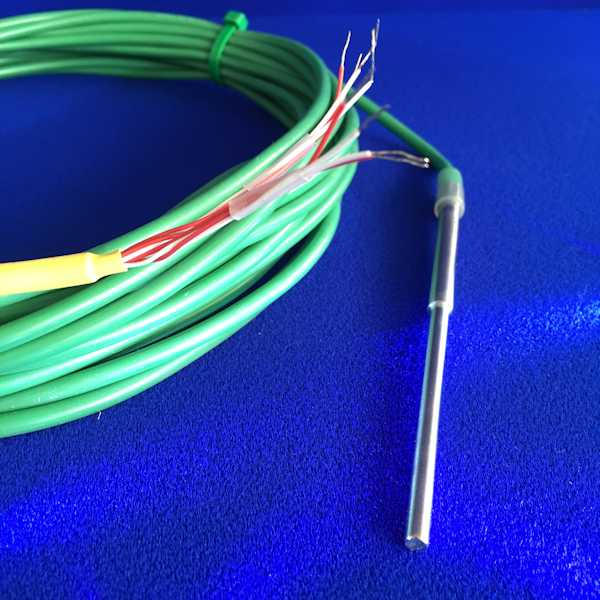

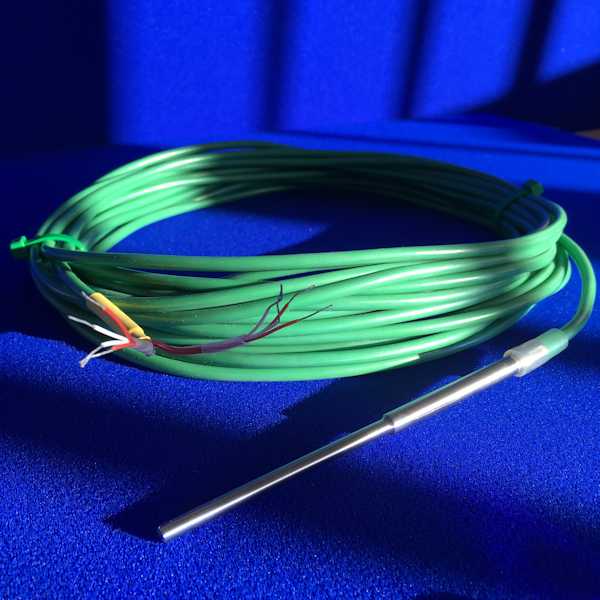

The SL150 Autoclave Temperature Probe is specifically designed for pharmaceutical, biotechnology and healthcare sterilisation applications, providing accurate measurement of both chamber and load temperatures during autoclave cycles. Its slim, flexible design makes it an ideal alternative to the Steriprobe® range where installation space is limited or access to the load is restricted.
Designed to deliver reliable and repeatable temperature monitoring in demanding sterilisation environments, the SL150 is suitable for routine process monitoring, thermal mapping and validation applications, helping to ensure effective sterilisation and regulatory compliance.
Sensor Options
The SL150 is available with a choice of temperature sensing technologies to suit a wide range of applications:
- PT100 and PT1000 RTD sensors
- Accuracy classes including Class A, Class AA (IEC 60751) and 1/10 DIN
- Type T and K thermocouples
- Single, duplex and custom sensor configurations
Probe diameters start from just 3mm, making the SL150 suitable for applications where minimal intrusion and maximum flexibility are required.
For applications requiring a right-angle sensor configuration, please see the SL160 90° Autoclave Temperature Probe range.
Mounting and Sealing Options
The SL150 is designed to provide a secure and reliable seal within the autoclave, with sealing achieved directly onto the cable using high-performance PTFE (Teflon®) olives.
A range of mounting options is available, including:
- Hygienic compression fittings for single or multiple probe installations
- Threaded compression fittings for single probe installations
- Available with BSPT, BSPP, NPT and metric thread options
- Custom fitting configurations available on request
Key Features
- Slim, flexible design for restricted-space applications
- Suitable for autoclave chamber and load temperature measurement
- Ideal for pharmaceutical sterilisation, validation and thermal mapping
- Probe diameters from 3mm
- Available with PT100, PT1000, Type T and Type K sensors
- Standard and custom probe lengths available
- Hygienic and threaded mounting options
Manufactured in the UK for demanding sterilisation environments.
Mounting Options

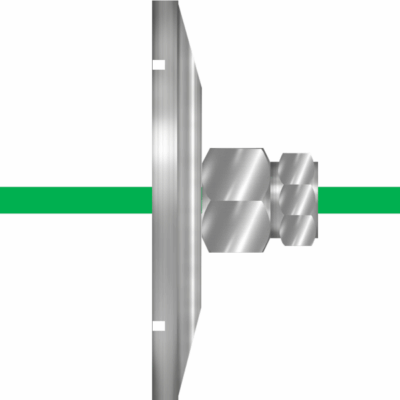

For this style of probe, the seal is made directly onto the cable, using Teflon® olives

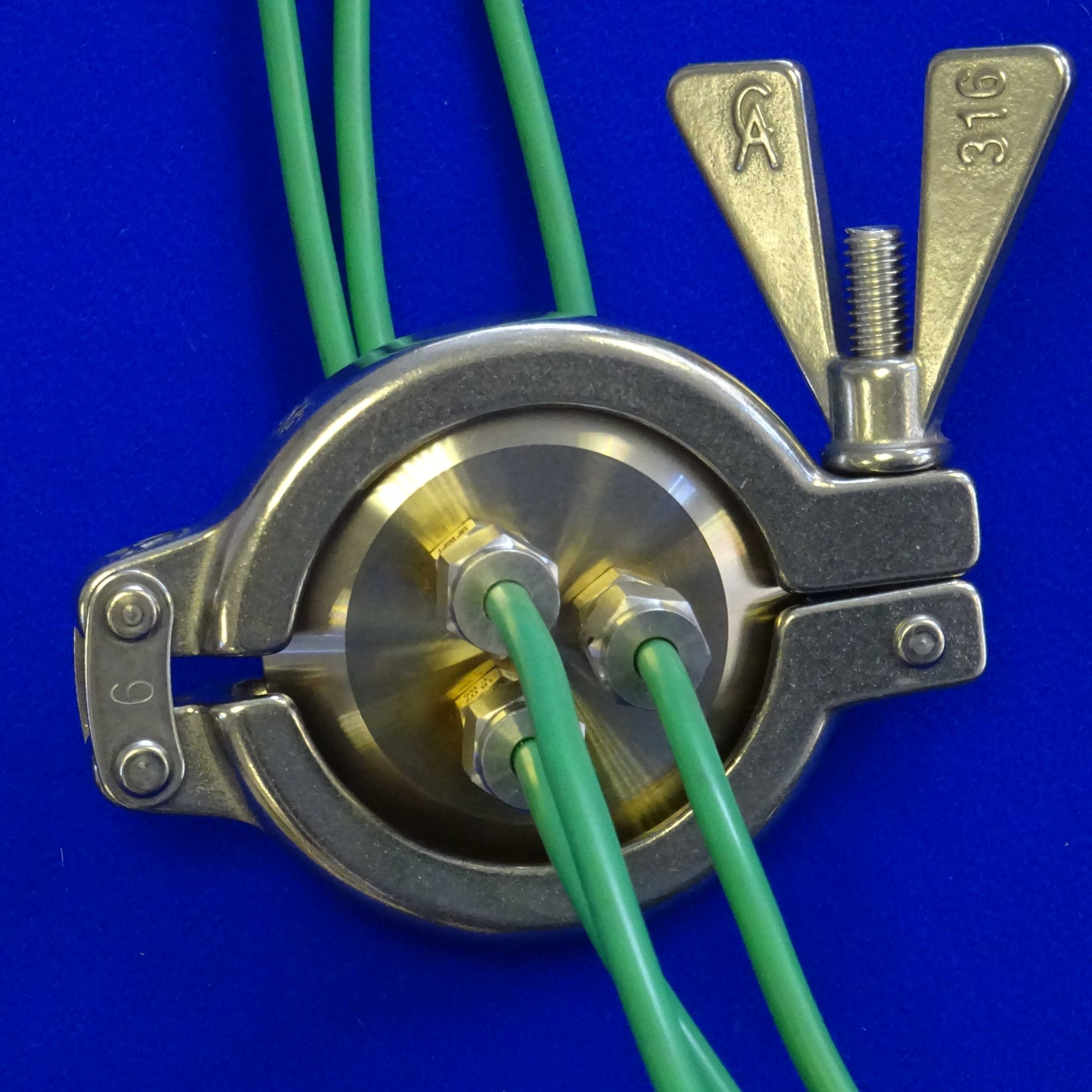

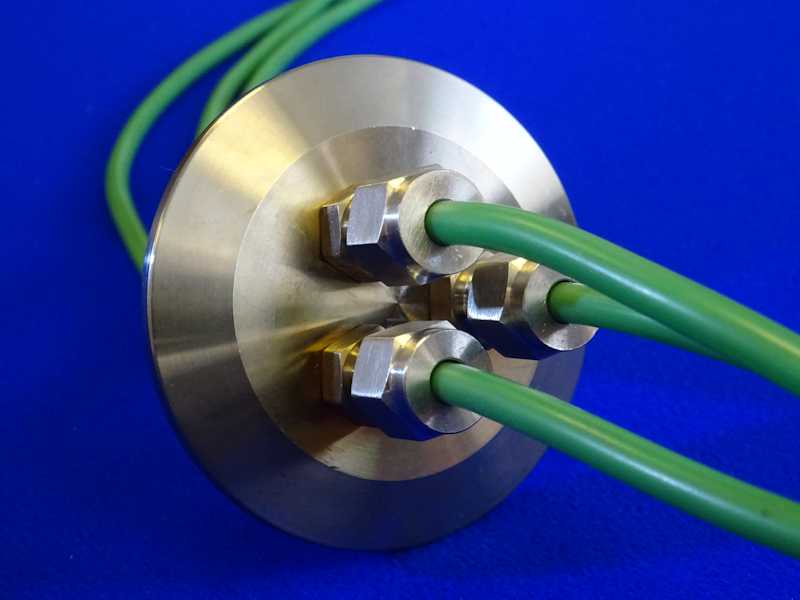

Hygienic Compression Fitting for single or multiple probes.
or threaded compression fittings for a single probe also available with BSPT, BSPP, NPT and Metric threads.
Please use the Product Enquiry Forms to indicate your requirements
Product Features
- SL150 specified by satisfied end users and autoclave manufacturers for many years.
- Used extensively in steam and water cycle autoclaves
- Offers increased flexibility with optional probe tip configurations.
- Available in PT100 and PT1000 RTD (Class A, AA as IEC 60751 also 1/10 DIN)
- Available in thermocouple formats (type T and K Class 1 as IEC 60584-1)
- All metallic parts in Grade 316L (1.4404/1.4435) stainless steel.
- Sensor conductors Teflon® insulated, outer jacket in thick walled extruded silicone rubber, FDA listed 21CFR 177 2600.
- Silicone rubber jacket to USP VI also available on request.
- Available in many sizes and custom requirements to order.
- Standard units ex-stock.
- Known in the USA as ‘Sterisensor’
- Feedthroughs to suit
