Ambient Air Temperature Sensor (AA)
Ambient Air Temperature Sensor (AA) PRODUCT
Accurate Ambient Air Temperature Monitoring for Pharmaceutical, Laboratory & Industrial Applications
The Ambient Air Temperature Sensor is designed for continuous and accurate monitoring of ambient air temperature in pharmaceutical, biotechnology, healthcare and industrial environments. Suitable for both indoor and outdoor installations, the AA sensor provides reliable temperature measurement for environmental monitoring, process control and building management applications.
Manufactured using high-quality 316 stainless steel components, the sensor is available in robust ABS thermoplastic or die-cast aluminium enclosures, providing excellent durability in demanding operating environments.
Typical Applications
The AA Ambient Air Temperature Sensor is ideal for:
- Pharmaceutical manufacturing facilities
- Cleanrooms
- Laboratories
- Stability chambers
- Cold rooms and refrigerated storage
- Computer and data centres
- HVAC and building management systems (BMS)
- External frost protection
- General industrial environmental monitoring
Designed for Accurate Air Temperature Measurement
The sensing element is housed within a stainless steel sheath to provide excellent thermal response and long-term stability. For outdoor installations, an optional perforated radiation shield helps minimise the effects of direct sunlight and wind, improving measurement accuracy during changing weather conditions.
Flexible Sensor Options
The AA sensor can be supplied to suit a wide range of applications, including:
- PT100 or PT1000 RTD sensors
- Class B, A or AA accuracy to IEC 60751
- Type T thermocouples
- 3-wire or 4-wire RTD configurations
- Single or duplex sensing elements
- Custom probe lengths and cable configurations
For integration with PLCs, SCADA and Building Management Systems, the sensor can also be supplied with an optional 4–20 mA temperature transmitter.
Optional Features
- ABS or die-cast aluminium enclosure
- IP67 environmental protection
- Outdoor radiation shield
- LEMO® quick-disconnect connector for rapid calibration and maintenance
- 4–20 mA transmitter option
- Bespoke configurations to customer specification
Contact our technical team to discuss your ambient air temperature measurement requirements or request a bespoke sensor designed specifically for your application.
Product Features
- All metallic parts in Grade 316L (1.4404/1.4435) stainless steel only.
- Enclosures available in ABS thermoplastic or die-cast aluminium.

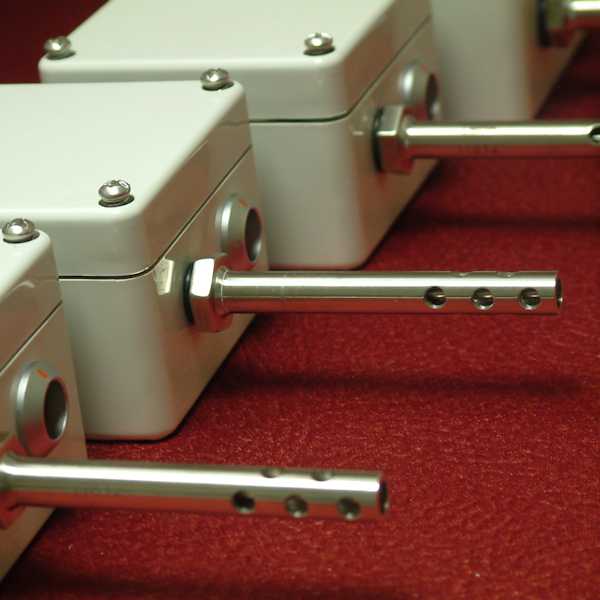

- Available with plain stem as standard or perforated to avoid wind chill in outdoor applications
- Available with a temperature transmitter to provide a signal output of 4 to 20mA for transmission to an indicator, recorder, data-logger or other instrumentation.

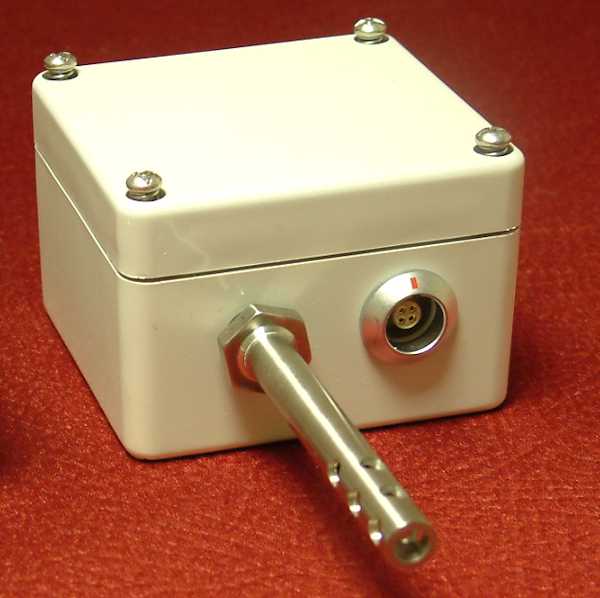

- Available with cable gland or Lemo connector for quick disconnect.
- Available in PT100 resistance thermometer (all tolerances)
- Available in thermocouple formats
- Custom requirements to order.
